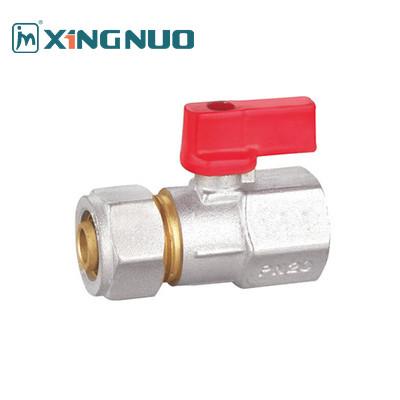

BV1061-F Brass Mini Ball Valve 1/2"X16,3/4"X20 Nominal Pressure Max 25bar

Brass BV1061-F

Specification

• ​forged brass body
• sand blast and nickel plated
• nominal pressure:Max.25bar(362.6psi)
• temperature:-10~120°C(14～248°F)
• threaded ISO228/1
• 100% leak tested
•

Technical Specification

Dimensions

Product Details

• Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

• Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

• Ball Valve: Smooth and wear resisting, with good sealing performance.

• Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

• Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

• Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

• Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

• O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

1. The thread, color of handle, materials, etc. can be customized.
2. Brass Ball Valve with Aluminium handle.
3. Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of BV-1061-F

Packaging Details

Brass Ball Valve series

• The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

1
Manufacturers of ball valves with butterfly handles made from forged brass guarantee that their products have undergone a rigorous leak testing process to ensure quality and reliability. The craftsmanship and attention to detail that goes into creating these valves is evident in their performance and durability. The use of forged brass in the construction of the ball valve ensures strength and longevity, making it a trusted choice for various applications.
2
Each ball valve with a butterfly handle goes through a 100% leak testing procedure to confirm its ability to withstand high pressure and prevent any potential leaks. The rigorous testing ensures that the valve meets industry standards and is ready for use in demanding environments. The butterfly handle allows for easy operation and control of the valve, making it ideal for both residential and commercial use.
3
Manufacturers take pride in producing high-quality forged brass ball valves with butterfly handles that are not only reliable but also efficient. The combination of superior materials and meticulous testing processes results in a product that customers can trust for their plumbing needs. Whether it is for residential plumbing systems or industrial applications, these valves offer peace of mind knowing that they have been thoroughly inspected and proven to perform consistently without leaks.
