Brass Ball Valve BV1033-MF Forged Brass Body Sand Blast Nickel Plated Pressure:Max25bar
Specification
Forged brass boby
Sand blast and nickel plated
Nominal Pressure:Max.16bar
Temperature:-10°C~110°C
Threaded ISO228/1
100% leak tested
| SIZE | A | B | C | D | E |
| 1/2" | 52 | 27 | 48 | 97 | 13.5 |
| 3/4" | 55.5 | 32 | 52 | 97 | 17 |
| 1“ | 68 | 41 | 60 | 109 | 22.5 |
| 11/4” | 78.5 | 51.5 | 68.5 | 140 | 29 |
| 11/2” | 88.5 | 60.5 | 71 | 140 | 35 |
| 2” | 101.5 | 74 | 102 | 165 | 44.5 |
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) | Qty per inner box | Qty per carton |
| 1/2" | 160 | 17×13.5×7 | 36×28.5×22.5 | 12 | 144 |
| 3/4" | 205 | 17×13.5×7 | 36×28.5×22.5 | 10 | 120 |
| 1” | 362 | 15×13×8 | 32×27.5×25.5 | 6 | 72 |
| 11/4” | 572 | 19×11×9.5 | 40×23.5×20.5 | 4 | 32 |
| 11/2” | 782 | 19.5×13×10.5 | 41×27.5×22.5 | 4 | 32 |
| 2” | 1175 | 22.5×13×8 | 42×27.5×24 | 2 | 20 |
1

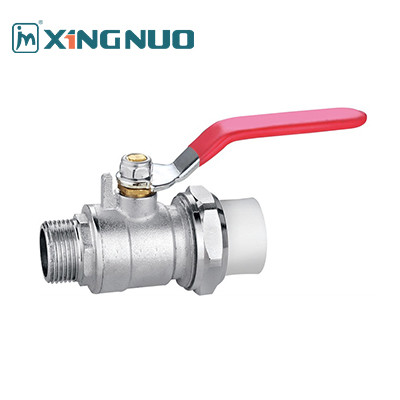

The brass red lever ball valve comes in both 1 inch and 2 inch
sizes, with male and female threaded options for easy installation.
The valve features a forged brass body, ensuring durability and
reliability in various applications. The threaded muff further
enhances the valve's functionality, making it suitable for a wide
range of industrial and commercial uses.
2
With its red lever, the ball valve provides easy and quick
operation, allowing for efficient control of the flow of liquids or
gases. The brass construction not only offers excellent corrosion
resistance, but also ensures high performance and long service
life. The male and female threaded options provide flexibility in
installation, catering to different piping requirements.
3
Overall, the brass red lever ball valve is a versatile and
dependable solution for controlling the flow of fluids in various
systems. Its sturdy construction, threaded options, and lever
operation make it a practical choice for industrial, commercial,
and residential applications where reliable flow control is
essential.
|
|
